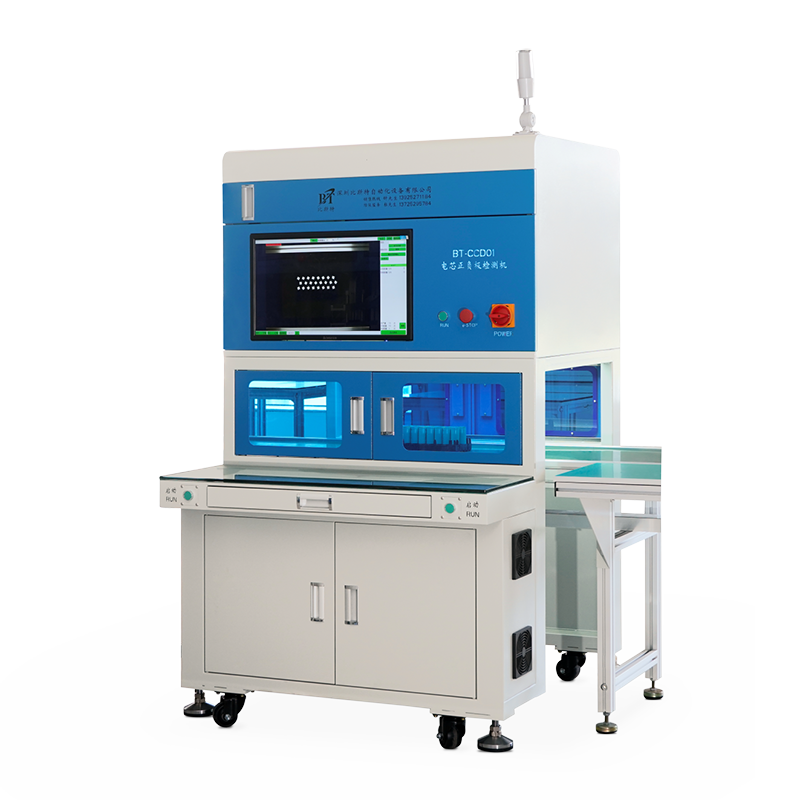

BT-CCD01-Al Battery cell positive and negative electrode Testing machine
2025-11-20 14:14:35
Product features：
Cyindnical cels are inserted into the mold o into the bracket,automaticaly identifying the direcion and arrangement of the positive and negatve poles of he cells
Prevent emergency errors and short circuit after spot welding to ensure safe production
一、Main function
Cyindnical cels are inserted into the mold o into the bracket,automaticaly identifying the direcion and arrangement of the positive and negatve poles of he cells
Prevent emergency errors and short circuit after spot welding to ensure safe production
二、Product characteristics
Parameters set, one-click start detection mode
Simple function setting, easy to understand and operate, no need for on-site training
The IPC supports the function of sudden power failure, and the databaseworks normally
Local database, mainly for cylindrical cell positive and negative electrodedata. other categories are not compatible
三、Product parameters
Device function | For the cylindnical cell,the positive and negative electrode data are collected by camera,and the positive and negative electrode numberand position infomation are compared with the sample,the result (NG or OK)is quickly analyzed,and the position of NG is marked,in order to confirm the positive and negative electrodes of the battery before entering spot welding,and prevent the bad caused by the wrong position of the positive and negative electrodes. | Power | AC220V 0.6KW 50/60HZ | ||||
Adaptive cell range | cylindnicalcel¹4430/14500/18650/21700 | ||||||
Adaptive detection range | 400*300mm,Custom-made for larger sizes | ||||||
Detection speed | 100PCS/1.5s | ||||||
Testing accuracy | 电芯未变形或未生锈，100% he core is not deformed or | nusty市100% | |||||
Equipment dimensions | L900*W720*H1600MM | ||||||
Weight | 80KG | ||||||
